FIBERMAK SIDE LOADING

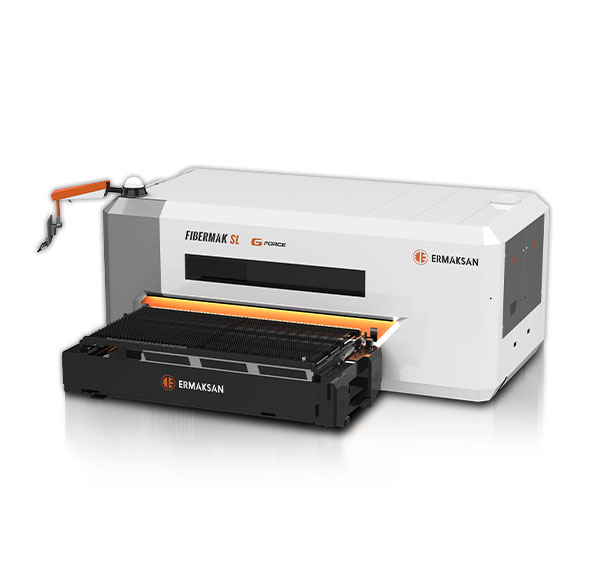

FIBERMAK SL G-FORCE FIBER LASER MACHINE
Defy Tight Spaces
With its side-loading design, Fibermak SL is the right choice designed for workshops with limited space without sacrificing from G-Force standards and quality. It only needs 68 m2 of floor space for standard 3x1.5m machines including the loading-unloading unit. If the workplace has a short hall, we recommend our customers to choose a side-loading fibre laser machine. Thanks to the high acceleration in G-Force series servo motor models, production time is reduced and productivity is increased by an average of 15% per hour.
The electric panel is now even more compact thanks to the structure developed in the side-loading machine. Thus, the number of equipment outside is also significantly reduced, providing great advantages to customers in terms of placement area, while saving installation time.
NOZZLE CLEANING / CALIBRATION
It is the process of autımatically cleaning the slag and dirt accumulated in the nozzle used with the nozzle cleaning system, offered in standard with Fibermak series lasers, by means of a cleaning brush.
Play
BEAM CENTERING CAMERA
The camera-aided laser beam centering adjustment system enables the operators to adjust the laser center effortlessly when needed.
Read more Play
ANTI CRASH SYSTEM
During cutting, possible collision between the laser cutting head and the displaced pieces is prevented, protecting the cutting head against damages.
Read more Play
ERAI - AI ASSISTANT
With ERAI - AI Assistant, discover features you didn't know about your machine, access solutions to errors, aand have a guide to show you the way.
Read more
FLY-CUT FEATURE
With the Fly-Cut feature, you can cut both circular and equilateral pieces at great speeds with great quality.
PlayFREQUENCY CUTTING MODE
Thick material piercings are performed more quickly and heating of the material cut is prevented.
Read more
FAST PIERCING
This technology provides the capability for quick and precise piercing in a shorter time.
Read more
INTERNET OF THINGS - SENDING E-MAIL
Machine status and information can be sent to the provided e-mail addresses by connecting the system to the internet. When the machine gives an error, the error code is sent via e-mail.
SHEET SORTING
Sheet metal separation is performed on the X or Y coordinate of the selected point on the image.
Read more
NC GRAPHICS AND REALTIME STREAMING
While the machine is cutting, it displays the 2D graphic of the NC code in color and allows you to follow which line of code it is on, all within a simple and user-friendly interface.
AUTO SHEET / AUTO MULTISHEET
It allows the part to be cut to be sent to the cutting by selecting the sheet detected by the camera. (Auto Sheet)
Read more Play
AUTOMATIC BEAM CENTERING AND NOZZLE QUALITY DETERMINATION
The camera-aided laser beam centering adjustment system enables the operators to adjust the laser center effortlessly when needed.
Read more

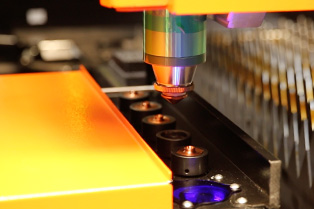

AUTOMATIC NOZZLE CHANGER
Different types of nozzles with different diameters must be used before cutting materials of different types and thickness.
Read more Play
AUTOMATIC PROFILE ALIGNMENT
An automatic profile alignment system has been developed for precise profile cutting with a profile cutting table in machines with Fibermak pipe and profile cutting options.
Read more Play
AUTOMATIC NESTING
It is the process of relocating the part with data on the image taken from the camera and decoding it.
PIERCETEC CUT CONDITION
With its integrated sensor, PierceTec controls laser power and drilling duration in real time. s.
Read more Play
SHEET SORTING
Sheet metal separation is performed on the X or Y coordinate of the selected point on the image.
Read more
BECKHOFF CONTROLLER
With its proven industrial PC-based control technology, Beckhoff offers a wide range of products for different applications.
Read more
METALIX CAD/CAM SOFTWARE
Offering a complete and comprehensive CAD/CAM solution, Metalix updates its software based on the latest developments in sheet metal processing technologies.
Read more
LANTEK EXPERT CUT CAD/CAM SOFTWARE
Lantek Expert Cut is a nesting software designed for users to simply follow the steps specified by the system.
Read more
LANTEK INSIDE CAD/CAM SOFTWARE
Programming with Lantek Inside is as easy as using your smartphone. The operator can easily design the program and initiate the cutting process.
Play
ERMAKSAN RESONATOR
State-of-the-art fibre laser resonators produced in Ermaksan Optoelectronics centre stand out with their power classes ranging from 1 to 15 kW, high beam quality, and advanced control features.
Read more
IPG-YLR SERIES RESONATOR
Being customized according to customer needs and requests, IPG-YLR Series (Cassette type) resonators offer affordable solutions to their users. Power alternatives between 1 to 4 kW are available.
IPG-YLS SERIES RESONATOR
IPG-YLS Series (Cabin type) resonators, which are provided according to customer needs and requests, have significant advantages thanks to the quality of easy and on-site maintenance. Power options from 1 to 20 kW are available.
Maxphotonics ELITE Series
Maxphotonics ELITE-Series is a laser source that balances cost and performance effectively.
Read more
Maxphotonics PRO Series
Maxphotonics PRO-Series stands as the flagship of the Max family's CW lasers, integrating the most advanced technology and laser cutting expertise.
Read more
IPG COOLING UNIT
Provides cooling of the relevant parts for continuity and precision in cutting.
Read more
PRECITEC PROCUTTER 2.0 CUTTING HEAD
With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.
Read more
PRECITEC PROCUTTER ZOOM 2.0 CUTTING HEAD
With its higher focal length and replaceable Spot Size feature, Procutter enables fast cutting on thin materials and high quality cuts on thick materials.
HANDWHEEL
It is an equipment that facilitates the positioning of the head even without staying by the control panel.
WIRELESS HANDWHEEL
Provides wireless and manual axis movements for quick positioning of the cutting head.
2.5G ACCELERATION
The 2.5 G acceleration capability of the Fibermak Momentum series with servo motors significantly increases the efficiency of transitions between pieces.
T Ø200 PIPE/PROFILE CUTTING
In addition to flat sheet metal cutting, we also allow our users to benefit from optional pipe and profile cutting features in our Fibermak Momentum series machines.
Read more
PNEUMATIC SHUTTLE TABLE WITH TRANSFER BALLS
Thanks to this system, the sheet metals placed on the table can be easily moved by the operator. It especially prevents the stainless steel sheets from scratches while being placed on the grill.
PROFILE HOLDING TABLE
It is an automatic profile alignment system for precise profile cutting with profile cutting table.
Read more Play
PALLET CONVEYOR
It is a system that enables the pieces falling into the machine during cutting to be brought to the operator by an automatic transport vehicle.
Read moreCLEAN - DRY AIR SYSTEM
This system ensures that the oil and moisture levels are reduced to certain figures in order for the values of air coming out of the compressor are at desired levels before the air is transferred to the machine.
Read morePROPORTIONAL VALVE SYSTEM
This is the system that automatically adjusts the O2 or N2 auxiliary gas according to the material type, and the auxiliary gas pressure according to the material thickness, and transfers the gas to the cutting head.
FILTERING UNIT
Ensures cleaning of smoke and small particles formed during cutting via suction.
Read moreEXHAUST FAN
The suction fan sucks the smoke and particles inside and discharges them to another area. Thus, the harmful particles in the air within the working environment are removed.
SAFETY LIGHT BARRIER
Offers a safer working environment with its light protection curtain that is in compliance with CE standards.
FIBER PROTECTION GOGGLES
This is a safety equipment used to prevent harmful beams that occur during cutting.
CENTRAL LUBRICATING SYSTEM
Automatic lubrication of the parts that require lubrication for extended lifetime of the machine by central lubrication system, without the need for an operator.
Read more
MUCH WORK IN A NARROW SPACE
Featuring a modular and ergonomic design, it is optimized for operator use and the physical environment to best meet user needs.
FAST AND CONTROLLED TABLE CHANGE
With the table positioned on the side, the table change time is 60% faster. Its proximity to the operator panel allows for more controlled changes during loading and unloading.
USER-FRIENDLY INTERFACE
Your work is now much easier with the user-friendly interface designed by Ermaksan engineers, considering operator needs. You can start automatic cutting with just a few steps and monitor the active job before and during cutting with the NC Graphics feature.
COMPACT STRUCTURE
The electrical cabinet is embedded inside the machine. Thanks to this compact structure, customer accessibility and intervention during maintenance and repair are facilitated.
HIGH PRECISION CUTTING
With ultra-fast EtherCAT communication technology, the driver, motor, and all control units apply the determined values in the most precise and fastest way. Thus, you get problem-free cuts just in time and with micron precision.
SMART FACTORY SOLUTIONS
With Industry 4.0 solutions, it provides the opportunity to create a Smart Factory with a fast and flexible structure, which enables innovation by increasing productivity in businesses, improves processes, and minimizes errors.
PRODUCT VIDEOS
Product Catalogue
Please click the link below to get detailed information about our products and to view our product catalogue digitally.
CataloguesOnline Catalog
Similar Products
Check out the other products in the category!
FIBERMAK MOMENTUM GEN-5
A next generation Fibermak that provides its users with superior performance at high cutting speeds.
View product
FIBERMAK MOMENTUM GEN-3
Superior Ermaksan technology, which has won many international awards with its strong and dynamic design; for those who know what they want.
View product
FIBERMAK RAPTOR
Developed with modular and ergonomic design in mind, Fibermak Raptor offers an economical solution without sacrificing from cutting quality.
View product
HAWK LASER
Thanks to its easy-to-install and compact structure, it provides a fast and efficient production laser process by reducing the installation, assembly, commissioning, and transportation times.
View product

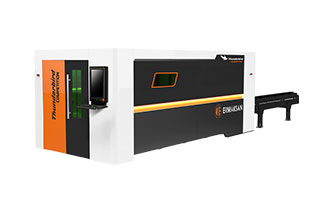

THUNDERBIRD
