EPL 3/5 AXIS PLASMA
EPL 3/5-AXIS PLASMA
Unmatched Precision, Maximum Productivity
Discover the excellence of the EPL Plasma series cutting systems, engineered for exceptional performance and longevity. Built with a robust structure that combines dynamic and static rigidity, these machines are designed to deliver reliable cutting capabilities for many years.
Our EPL Plasma machines are powered by advanced Hypertherm technologies, available with XPR and HPR series options tailored to your needs. Experience a remarkable improvement in operational efficiency with over 40% longer consumable life and more than 50% reduction in operating costs. Elevate your cutting capabilities with our optional 5-axis cutting technology, which allows for bevel cuts at multiple angles. This advanced feature ensures precision in vertical and bevel cuts, while the automatic angle adjustment minimizes operator errors and maximizes time savings. Even in the most demanding production environments, the EPL Plasma series stands out, providing you with the power and efficiency needed to excel.

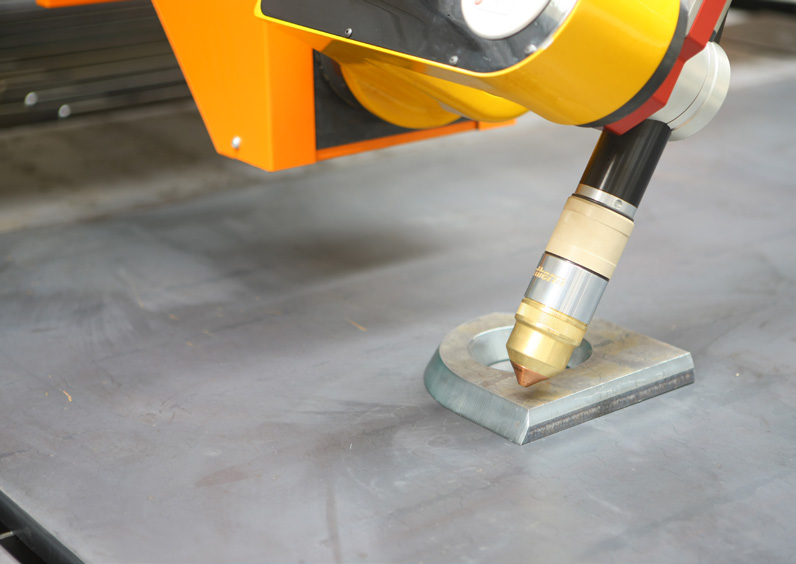

5 AXIS CUTTING HEAD
All angles are calculated automatically with 5 axis cutting technology. During the cutting process, it composes the angle value automatically, which the operator needs to enter. 5 axis cutting technology is a perfect solution for vertical and angular cuts.
Automatic angle adjustment provides time saving to the operator and removes the issues which could be caused by operator errors.

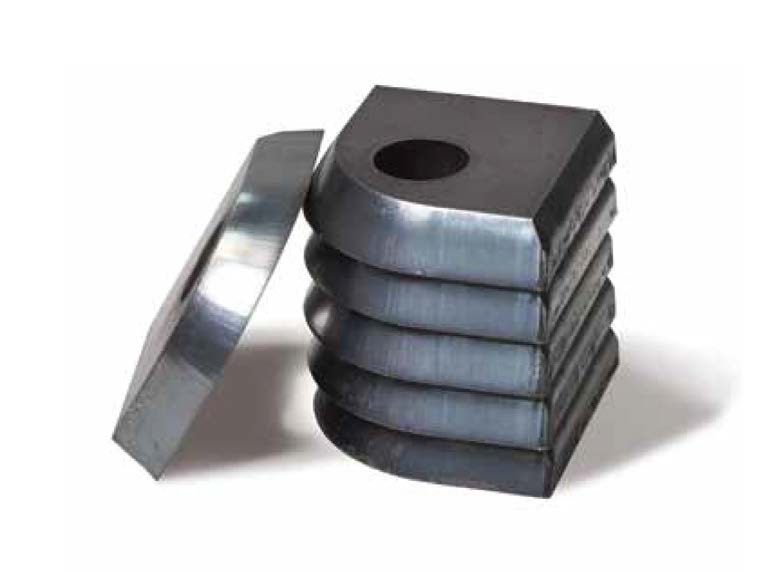

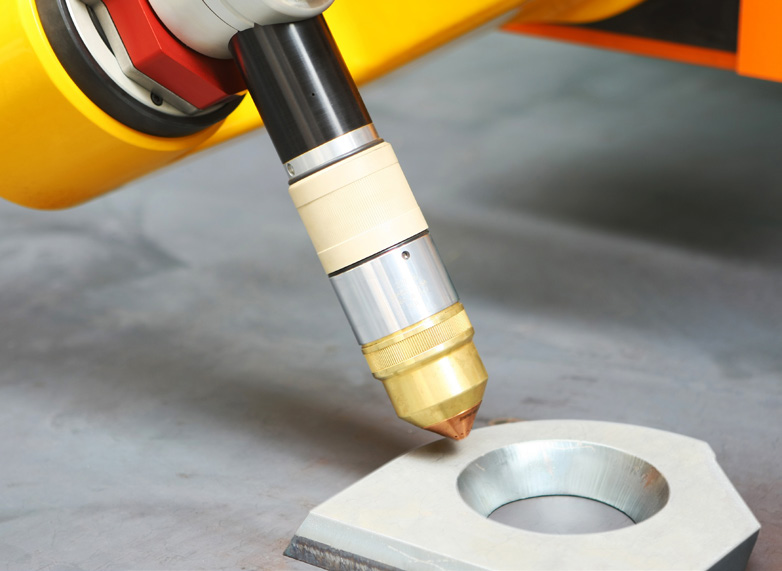

TRUE BEVEL TECHNOLOGY
As part of Hypertherm’s SureCut™ technology, True Bevel™ technology for HPRXD® and XPR™ plasma systems is a performance application for mild steel. Factory tested and easily implemented, it takes the guesswork out of the plasma bevel- cutting process. With True Bevel, setups for new jobs are quick and results are accurate and consistent.

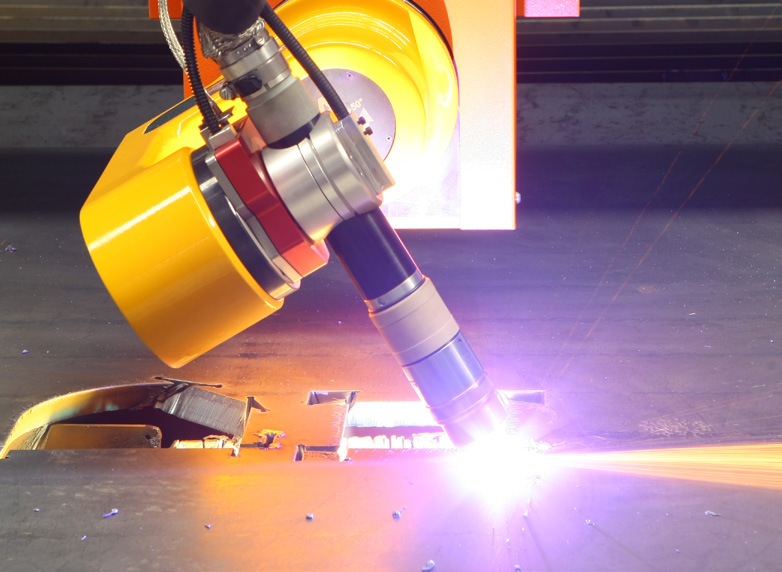

BEVEL ANGLE & LAND DENSITY COVERAGE
True BevelTM for XPR300® has angle coverage for V and Top Y cuts up to 50° and A cuts up to 45°. The tables contain values for lands ranging from 20% to 50% of the material thickness for Y Top cuts. You can add other angles and land dimensions within the specified ranges into the bevel process parameter tables for more flexibility. The tables automatically provide newly calculated output values for angle compensation, kerf, cut height, cut speed, and arc voltage.
BENEFITS
- Automatically bolt hole without operator intervention quality offered
- Close the gap between the laser hole quality and the plasma process. Makes it a convenient option for many laser-cut jobs
- Completely eliminates hole taper
- Resonant is minimal and deflected out of the hole
- Provides true bolt hole “quality”
ELECTRIC PANEL / PLATFORM
The control panel has a mobile design and can move independent of the bridge.
FILTERING UNIT
Ensures cleaning of smoke and small particles formed during cutting via suction.
Read more

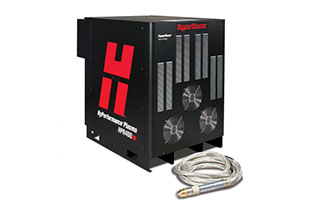

HYPERTHERM HPR400 XD POWER SUPPLY UNIT
HyPerformance Plasma systems provide faster cut speeds to produce more parts per hour.
Read more

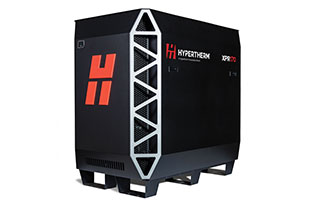

HYPERTHERM XPR170 POWER SOURCE
The XPR170 delivers next generation X-Definition processes from very thin up to mid-range thicknesses.
Read more

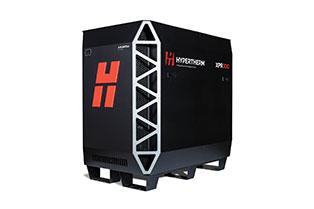

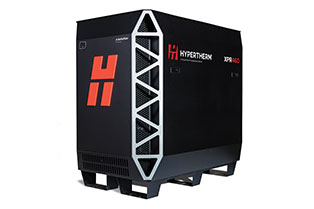

HYPERTHERM XPR300 POWER SOURCE
The most significant advance in mechanized plasma cutting technology redefines what plasma can do.
Read more Play
LIGHT BODYGUARD
Leuze M 4000 backlight protection curtain that complies with CE standards, ensuring safe operation.
BODYGUARD CAAF
With the cage barrier system built around the machine, external access to the moving parts of the machine is prevented.
EMERGANCY STOP CABLE AROUND THE GANTRY
Thanks to the security cable around the bridge, the machine can be stopped when the cable is pulled by the operator or someone around in case of an undesired condition.
5-AXIS CUTTING HEAD
All angles are calculated automatically with 5 axis cutting technology. During the cutting process, it composes the angle value automatically, which the operator needs to enter. 5 axis cutting technology is a perfect solution for vertical and angular cuts.
Read moreCOMPACT TABLE
Integral design of the cutting table and the machine body in smaller machines.
Read moreWATER TABLE
The inner part of the cutting table allows you to cut while filled with water up to the surface of the plate.
ELECTRIC PANEL COOLER
Coolers or heaters can be installed on the electrical panel according to operation environment.
HYPERTHERM EDGECONNECT TC CONTROLLER
Hypertherm’s proprietary Phoenix software is common across the entire family of CNCs.
Read moreI-CUT PLATE
Offers an optimum solution for all your needs with its advanced precision cutting quality, production line, and automation compatibility.
Read moreI-CUT PLATE + PIPE
EPL Plasma series have been designed to precisely cut pipes with a diameter of 50 - 400 mm with pipe cutting technology.
Read moreI-CUT PLATE + PIPE + PROFILE
Ermaksan has designed the EPL Plasma series to precisely cut pipes in standard with a diameter of 50 - 400 mm, 400x400 square profiles and 100x150 rectangular profiles with pipe cutting technology.
Read moreTRUE BEVEL + TRUE HOLE
Ermaksan has designed the EPL Plasma series with pipe cutting technology to precisely cut pipes with a diameter of 50 - 400 mm.
Read moreTRUE BEVEL + TRUE HOLE + BEVEL PIPE
Has been designed to precisely cut pipes (straight and angled) with a diameter of 50 - 400 mm with pipe cutting technology.
Read moreTRUE BEVEL + TRUE HOLE + BEVEL PIPE + BEVEL PROFILE
The Plasma series have been designed to precisely cut pipes in standard with a diameter of 50 - 400 mm, 400x400 square profiles and 100x150 rectangular profiles with pipe cutting technology.
Read moreMARKING PEN
As a pneumatic system, it can be used to draw figures or write with hard-tipped dot strokes on flat surfaces with dot strokes.
MITSUBISHI DIGITAL AC SERVO MOTOR
A double-driven synchronous motor, and a single-driven AC servo motor in accordance with CE and CSA standards are used on Y and X axes, respectively.
OXY CUT ±45° MANUAL ANGLE CUTTING APPARATUS
Oxygen cutting torch is a manual system that allows cutting with a maximum of ±45 degrees in horizontal and vertical direction, depending on the manual angle apparatus.
OXYCUT - OXY-FUEL CUTTING SYSTEM
Users of ProNest advanced nesting software gain an advantage when able to program for more than one cutting process.

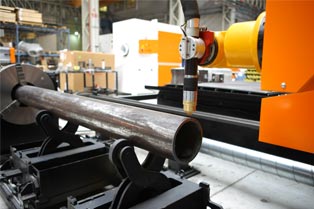

Read moreSTRAIGHT PIPE CUTTING
Ermaksan has designed EPL Plasma series to cut tubes from 50 to 400 mm in diameter precisely with its tube cutting technology.
Read moreCORE CONSOL
Unmatched mild steel cutting performance and superior angularity and edge finish on stainless steel up to 12 mm (1/2”).
Read moreVWI GAS CONSOLE
There is a ventilated N2 plasma and an H2O enclosure in this VWI (Vented Water Injection) patented system.
Read moreOPTIMIX GAS CONSOLE
All the capabilities of the Core and VWI consoles plus discrete 3-gas mixing – Ar, H2, and N2 – for the world’s most flexible, premium stainless steel and aluminum cutting capability.
CORE PLUS CONSOL
Like the Core, the CorePlus console offers full X-Definition capability on mild steel and entry-level capability on stainless steel and aluminum with nitrogen as its plasma gas.
Read moreVENTED WATER INJECTION (VWI) KONSOL
True BevelTM for XPR300® has angle coverage for V and Top Y cuts up to 50° and A cuts up to 45°. The tables contain values for lands ranging from 20% to 50% of the material thickness for Y Top cuts.
Read moreEXPANDED BRIDGE MANUAL ± 45° ANGLE CUTTING APPARATUS
When a manual angle apparatus is attached to the plasma or oxygen cutting torch in the extended bridge machine, the machine bridge can be extended and the machine length can be increased.
Read moreSTANDARD BRIDGE MANUAL ± 45° ANGLE CUTTING APPARATUS
When a manual angle apparatus is attached to the plasma or oxygen cutting torch in the standard bridge machine, full distance full length cutting losses are experienced due to the angled stance of the torch.
Read morePLATESAVER
PlateSaver technology enables the use of new, special-purpose I/Os for CAM software when programming jobs for XPR-equipped machines.
Read moreRAPID PART
Rapid Part technology provides superior performance to your operators, your company, and also to your budget.
Read moreNETWORK INTERFACES AND USB PORT FEATURE
It is possible to set up a network connection with the controller. With this connection, it is possible to remotely access to the machine.
Read moreRETURN FEATURE
When an undesirable situation occurs during cutting or when we need to bring the machine to a different position, this feature allows us to return to the last point where cutting was stopped.
METRIC AND INCH FEATURE
It is possible to switch between metric and inch systems on the machine software.
POINT LASER LIGHT FEATURE
Thanks to the laser light, it allows us to see more clearly where the torch is.
Read moreAUTOMATIC CUTTING HEIGHT CORRECTION SOFTWARE
Automatically detects and corrects arc voltage changes during plasma cutting.
Read morePLATE ALIGNMENT FEATURE
It is the feature that allows the workpiece or plate placed arbitrarily on the cutting table to be aligned by reference from two corners by meanss of a torch or a laser light.
NEUGART PLANET TYPE REDUCER
High acceleration levels are achieved thanks to the servo motor, driver, and reducer with high precision reaction times.
Read more

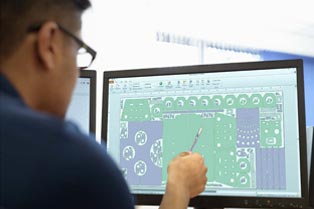

PRONEST® SOFTWARE
Nesting software for advanced mechanized cutting in enterprise and production environments.
Read more
DESIGN2FAB® SOFTWARE
Sheet metal layout software for HVAC, duct work, mechanical, kitchen, industrial, roofing, and more.
ROTARY TUBE PRO™ SOFTWARE
Pipe and tube cutting software for stand-alone tube cutting machines or cutting table add-ons.
Read more
HIGH CUTTING QUALITY
The XPR series integrates cutting-edge technology with advanced cutting processes to deliver next-generation X-Definition™ quality. Whether cutting black sheet metal, stainless steel, or aluminum, the XPR takes HyDefinition™ cutting quality to new heights, ensuring superior precision and excellence in every cut.
LONG-TERM SAVINGS
With advanced power supply technology and real-time system feedback, our cutting machines automatically adjust to optimize performance and extend the life of consumables. This proactive approach ensures that inefficiencies are addressed immediately, leading to significant long-term savings on both operational costs and maintenance.
LOW ENERGY CONSUMPTION
Designed with energy efficiency and minimal resource use in mind, our cutting machines maximize productivity and savings while minimizing environmental impact. By focusing on reducing energy consumption, we ensure that our equipment not only performs efficiently but also contributes to a more sustainable future.
EASY OPERATION
Our system simplifies operation by automatically setting and controlling optimized cutting parameters with just a single step. This approach ensures consistent, high-quality results and minimizes the need for operator intervention, streamlining your workflow and enhancing efficiency.
LOW OPERATING COST
Achieve over 40% longer consumable life and reduce operating costs by more than 50%. Our advanced technology not only extends the lifespan of your consumables but also significantly cuts down on overall operational expenses, providing you with exceptional cost-efficiency and value.
FLEXIBLE SOLUTIONS
Our system provides versatile solutions tailored to your needs, accommodating various automation requirements while ensuring ease of use for operators. Its adaptable design allows for seamless integration with automated processes, enhancing both flexibility and user convenience.
