FIBERMAK SIDE LOADING
MUCH WORK IN A NARROW SPACE
Featuring a modular and ergonomic design, it is optimized for operator use and the physical environment to best meet user needs.
FAST AND CONTROLLED TABLE CHANGE
With the table positioned on the side, the table change time is 60% faster. Its proximity to the operator panel allows for more controlled changes during loading and unloading.
USER-FRIENDLY INTERFACE
Your work is now much easier with the user-friendly interface designed by Ermaksan engineers, considering operator needs. You can start automatic cutting with just a few steps and monitor the active job before and during cutting with the NC Graphics feature.
COMPACT STRUCTURE
The electrical cabinet is embedded inside the machine. Thanks to this compact structure, customer accessibility and intervention during maintenance and repair are facilitated.
HIGH PRECISION CUTTING
With ultra-fast EtherCAT communication technology, the driver, motor, and all control units apply the determined values in the most precise and fastest way. Thus, you get problem-free cuts just in time and with micron precision.
SMART FACTORY SOLUTIONS
With Industry 4.0 solutions, it provides the opportunity to create a Smart Factory with a fast and flexible structure, which enables innovation by increasing productivity in businesses, improves processes, and minimizes errors.
SUBSCRIBE E-NEWSLETTER
You can subscribe to the e-bulletin to receive information regarding the developments about Ermaksan
ANTI CRASH SYSTEM
ÇARPIŞMA ÖNLEYİCİ SİSTEM
This feature ensures maximum safety while reducing downtime and hardware costs
Safety Equipment
Güvenlik Ekipmanı
FIBER PROTECTION GOGGLES
FİBER KORUMA GÖZLÜĞÜ
Handwheel
El Çarkı
WIRELESS HANDWHEEL
KABLOSUZ EL ÇARKI
HANDWHEEL
EL ÇARKI
Filtering System
Emiş Ünitesi
EXHAUST FAN
EMİŞ FANI
FILTERING UNIT
EMİŞ ÜNİTESİ
Filtering unit is designed specially for filtering the gas and particles. With this unit the dirty dust is removed, leaning a safe & clean working environment.
- Clean working ambiance
- Integrated burr separator inhibiting sparks and heavy particles to Reach into the filtering unit during cutting
- 99.9% filtration efficiency according to EN 60335/2/69
- Synchronized automatic start and stop from CNC cutting frame as command
FREQUENCY CUTTING MODE
FREKANSLI KESİM MODU
With the frequency modulation used in sharp corners, it offers the opportunity to cut thick materials in steep corner cuts without melting and giving radius to the corner.
INTERNET OF THINGS - SENDING E-MAIL
IOT - SMS / E-POSTA GÖNDERİMİ
SAFETY LIGHT BARRIER
GÜVENLİK IŞIK BARİYERİ
BEAM CENTERING CAMERA
CALBEC-KAMERA DESTEKLİ LAZER IŞIN MERKEZLEME
Laser center adjustment camera is installed into the interior of the machine and this feature is activated by pressing a single button on the operator panel. It can also detect nozzle quality.
2.5G ACCELERATION
2.5G İVMELENME
Cutting Head
Kesim Kafası
PRECITEC PROCUTTER 2.0 CUTTING HEAD
PRECITEC PROCUTTER 2.0 KESİM KAFASI
With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.
The cutting head runs smoothly at high laser powers thanks to its advanced cooling concept and extended travel paths.
Fluctuations in the quality of the material to be cut are resolved without any intervention of machine operator.
PRECITEC PROCUTTER ZOOM 2.0 CUTTING HEAD
PRECITEC PROCUTTER ZOOM 2.0 KESİM KAFASI
Cutting Table
Kesim Tablası
PROFILE HOLDING TABLE
PROFİL TUTMA TABLASI
With this system, it is ensured that your profiles are realised within the acceptable tolerance range by preventing shifts during the processing process.
PNEUMATIC SHUTTLE TABLE WITH TRANSFER BALLS
PNÖMATİK BİLYALI İKİLİ OTOMATİK MEKİK TABLA (SAC KAYDIRMALI)
DOUBLE AUTOMATIC SHUTTLE TABLE
İKİLİ OTOMATİK MEKİK TABLA
It consists of two movable tables. While processing on the table inside the machine continues, the other table can be loaded with sheet metal or machined parts can be collected. In this way, it allows continuous cutting. In addition to the shuttle table, full automatic loading and unloading systems may also be added.
Controller
Kontrolör
BECKHOFF CONTROLLER
BECKHOFF KONTROLÖR
- With the 21.5'' Beckhoff control panel, Windows10© operating system and multi-touch screen used in Fibermak GEN-5 series laser cutting machines, it can provide all the information and parameters that the operator needs from a single screen and perform the
necessary operations or changes online faster. - All software on the control panel has been written by Ermaksan engineers. Thanks to its flexible structure, the places of the menus used can be changed according to the needs and usage habits of the operator.
- Integrated camera system helps to monitor the cutting proccess on the CNC screen.
- The device works more efficiently by providing information on how often and at what intervals operators should perform device and equipment maintenance.
- Thanks to Industry 4.0 integration, the working efficiency of the machine can be continuously monitored.
- Thanks to the user interface, operators are prevented from accidentally interfering with the system and high-level users can easily control this flow.
- If changes to the cutting parameters are forgotten, the cutting parameters embedded in the system can be recalled.
- It is possible to re-create cutting parameters with precise definitions for different materials and cutting types.
- With the multi-camera system option to be added to the system, online transactions can be monitored and recorded with more than one camera. Information messages can be sent to phone numbers with sim card support option integrated in the operator panel.
- By connecting the system to the internet, machine status and information can be sent to the given e-mail addresses.
- With the adjustable arm added to the control panel, the control panel can be adjusted to the desired angle, inclination and height.
Conveyor
Konveyör
SLAG PAN
CURUF TOPLAMA TAVASI
PALLET CONVEYOR
PALETLİ KONVEYÖR
With this system, while the workpieces reach the operator, on the other hand, the slag sticking to the workpieces is prevented by the discharge of the resulting scrap pieces.
Koruma Camı İzleme Sensörü
Koruma Camı İzleme Sensörü
KORUMA CAMI İZLEME SENSÖRÜ
KORUMA CAMI İZLEME SENSÖRÜ
Dry Air System
Kuru Hava Sistemi
CLEAN - DRY AIR SYSTEM
TEMİZ - KURU HAVA SİSTEMİ
When the necessary infrastructure is created, it can also cut certain materials up to limited thicknesses with high pressure dry air without the need for any other auxiliary gas. Gas costs are saved.

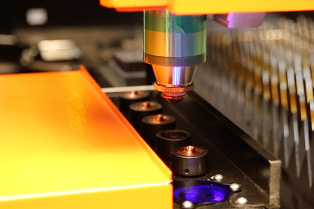

AUTOMATIC NOZZLE CHANGER
OTOMATİK NOZUL DEĞİŞTİRME
According to the selected sheet thickness and type, the system automatically selects and changes the defined nozzle.
NOZZLE CLEANING / CALIBRATION
NOZÜL TEMİZLEME / KALİBRASYON
INDUSTRY 4.0
ENDÜSTRİ 4.0
ALL INTEGRATED
Integrate your machine data with your MES and ERP applications.
ALL THE DATA
Record your machine historic performance data. Track your machine Job and Operator performance.
ALL THE MACHINES
Enable all your production line to be monitored. Retrofit you existing machines to our Industry 4.0 platform.
ANY WHERE
Monitor and track machine performance over the flexible easy to use WEB interface from any where
ANY TIME
Reach your machine performance data any time you like.
EFFICIENCY GRAPH OF THE MACHINE FOR THE LAST WEEK
Generates a trend graph by compiling the operational information of the machine. Operation performance for the previous week may be monitored.
DETAILED INFORMATION OF THE LAST WORK COMPLETED
Indicates all the details of the work done, and information such as how long it did take the operator to complete which work and in what way.
OEE VALUES OF THE MACHINE
Collects all the information during the stand-by, production and preparation processes to generate a general productivity chart.
EQUIPMENT DATA
It shows the instantaneous data of the operational elements of the machines as trend graph.
MACHINE MONITORING SCREEN
You may monitor your machines in different fields from a single screen.
STATUS OF THE MACHINES
This provides the lists of the operational and non-operational machines on the field and the summary of their operation.
Automation System
Otomasyon Sistemi
Resonator
Rezonatör
IPG-YLR SERIES RESONATOR
IPG-YLR SERİSİ REZONATÖR
IPG-YLS SERIES RESONATOR
IPG-YLS SERİSİ REZONATÖR
ERMAKSAN RESONATOR
ERMAKSAN REZONATÖR
Ermaksan's high strength; The fiber laser family offers users single mode and multi-mode options, while also providing excellent power; It also guarantees stability, high efficiency and beam quality.
Cooling System
Soğutma Sistemi
IPG COOLING UNIT
IPG SOĞUTUCU ÜNİTE
Provides cooling of the relevant parts for continuity and precision in cutting. The laser unit is the collimation part in the cutting head and the part that provides cooling of the lens.
It has a water-based cooling system. It is used with IPG - YLS series resonators.
CENTRAL LUBRICATING SYSTEM
MERKEZİ YAĞLAMA SİSTEMİ
Automatic skid lubrication system extends the life of the machine's skidding system; The oil in the automatic lubrication unit reservoir provides lubrication of the desired area through the grease pump, distributor and hoses in certain periods.
Software
Yazılım
LANTEK INSIDE CAD/CAM SOFTWARE
LANTEK INSIDE CAD/CAM YAZILIMI
METALIX CAD/CAM SOFTWARE
METALIX CAD/CAM YAZILIMI
• High accuracy Time / Cost analysis
• Nesting with minimum waste rates
• Cameraless terminal license standard
• 2D & 3D import from Solid with Cadlink
• High and effective programming speed
• Mtube in machines with pipe cutting option
• Use of multiple machines with single license
LANTEK EXPERT CUT CAD/CAM SOFTWARE
LANTEK EXPERT CUT CAD/CAM YAZILIMI
This system is a combination of automatic, semi-automatic and manual insertion, providing great flexibility and optimum performance.
Acceleration
İvmelenme
Lubrication System
Yağlama Sistemi
Pipe Cutting Unit
Boru Kesme
T Ø200 PIPE/PROFILE CUTTING
T Ø200 BORU/PROFİL KESME
Your machine is cutting straight sheet metal while your operator saves time by connecting the pipe or profile to be cut on the loading & unloading trolley independent of the shuttle tables.
The pipe or profile fixed between the mirror and the spot is supported by intermediate support apparatus to ensure that the long parts rotate smoothly without deflection, which ensures quality cutting.
Pipe – In addition to the CAD/CAM software provided for flat sheet metal cutting, 3D CAD/CAM software is provided where pictures of pipes and profile parts can be drawn and/or loaded, desired holes and figures can be drilled, nesting and cutting simulation can be performed in addition to our machines supplied with profile cutting option.
Proportional Valve System
Oransal Valf Sistemi
PROPORTIONAL VALVE SYSTEM
ORANSAL VALF SİSTEMİ
Smart Features
Akıllı Özellikler

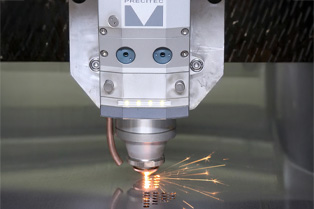

FLY-CUT FEATURE
FLY-CUT
MIXED GAS
KARIŞIM GAZ
We provide higher speeds and excellent quality with mixed gas and as well as lower gas cost.
PIERCETEC CUT CONDITION
PIERCETEC CUT CONDITION
PierceTec saves on cycle time and operating cost
AUTOMATIC PROFILE ALIGNMENT
OTOMATİK PROFİL HİZALAMA
This feature prevents measurement drifts that may occur in profile cuts.
SHEET SORTING
SAC AYIRMA
If there is an obstacle to cutting at the point selected by the image processing method, the cutting offset is made by detecting it on the image.
AUTOMATIC NESTING
OTOMATİK YERLEŞTİRME
AUTOMATIC BEAM CENTERING AND NOZZLE QUALITY DETERMINATION
OTOMATİK IŞIN MERKEZİ BULMA VE NOZUL KALİTE TESPİTİ
Using the image processing technique, the laser head is placed on the center adjustment camera. With the help of the camera, the status of the beam is displayed on the screen and the off-center status is reported. Thus, the center adjustment is made thanks to the declared commands. During center setting, the nozzle loses its circular shape. If this situation exceeds the tolerance that will affect the cutting, a warning will appear and a nozzle change request is made.
AUTO SHEET / AUTO MULTISHEET
OTOMATİK / ÇOKLU SAC BULMA
By assigning the jobs added to the work list to the sheet metals detected via the camera, it allows defining which part will be cut on which sheet. (Auto MultiSheet)
Maxphotonics PRO Series
Maxphotonics PRO Serisi
Maxphotonics PRO-Series stands as the flagship of the Max family's CW lasers, integrating the most advanced technology and laser cutting expertise. Designed for the most demanding markets, the PRO-Series delivers top-notch performance where excellence is essential.
PRODUCT FEATURES
- Top-notch quality and performance
- Multiple control interfaces for easy integration
- Performance Level D (PL-d) safety standard
- ZERO power degradation for up to 3 years to safeguard your investment and productivity
- Complies with major EU/US standards/certificates, including CE, ETL, FDA; UL compatible
Maxphotonics ELITE Series
Maxphotonics ELITE Serisi
Maxphotonics ELITE-Series is a laser source that balances cost and performance effectively. It incorporates widely used and well-qualified optical components to achieve good cost-effective performance without sacrificing reliability.
PRODUCT FEATURES
- Multi-functional I/O Interface
- Full Coverage Certificates, Including CE/FDA/ETL(UL)
- Excellent Cost and Performance Compound
- Performance Level D(PL-d)
- Plug and Play
- Effective Power Redundancy
NC GRAPHICS AND REALTIME STREAMING
NC GRAFİK VE GERÇEK ZAMANLI AKIŞ
ERAI - AI ASSISTANT
ERAI YAPAY ZEKA ASİSTANI
ERAI is always there for technical support and guidance.
FAST PIERCING
HIZLI DELİK AÇMA
It enhances efficiency with monitored processes and focus adjustment. Synchronized with the cutting head movement, it optimizes operations for medium-thickness plates without requiring extra time or movement.
SHEET SORTING
ISKARTA AYIRMA
If there is an obstacle to cutting at the point selected by the image processing method, the cutting offset is made by detecting it on the image.
ERCUT 7
ERCUT 7
- 7” touch screen
- Simple and intuitive interface
- Advanced wide colour graphic display
- Easy cutting page
- Bright coloured large buttons
- Recording up to 100 different programs
- Error warning system
- Advanced error detection algorithm
- Enriched analogue controller
- Supports 4 different languages
- Sheet metal support system
- Automatic cutting angle and blade gap control
