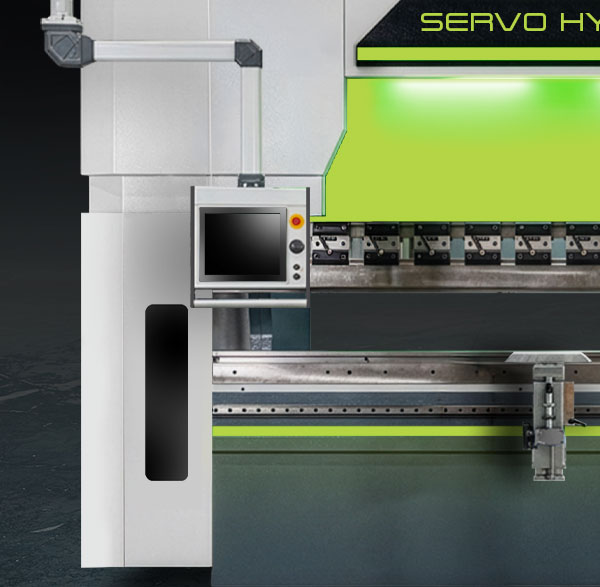

EVO-IV SERVO HYBRID PRESS BRAKE

Less energy, less oil, lower operating costs

EVO-IV Servo Hybrid is a next-generation press brake that combines 100% servo motor technology with an SPVM/SPLM-based closed-loop hydraulic system. Developed to reduce the operating burden of conventional hydraulic press brakes, EVO-IV stands out with energy efficiency potential, reduced maintenance effort, and quieter operation.

Full control through servo motor technology All axis movements — including the main motor and backgauge motors — are managed by servo motor technology. This architecture enables real-time optimization of speed and force to match each workpiece. The 200 – 10 – 190 mm/s speed cycle supports both high productivity and precise bending control.

Closed-loop hydraulic system, clean and compact by design The SPVM/SPLM-based closed-loop hydraulic system integrates the motor, pump, filter, and main block into a unified assembly. A cleaner internal layout simplifies maintenance access, while fewer components reduce potential failure points.

Lower energy demand and reduced oil volume Depending on the operating profile, EVO-IV Servo Hybrid delivers up to ~65% energy saving potential (benchmark). Because hydraulic power is supplied only when needed, the system avoids continuous pump operation typical of conventional hydraulics. A reduced oil tank volume (130 L) supports easier oil consumption and lower operating expenditure.

Quieter, more comfortable shop-floor operation Servo hybrid technology reduces continuous pump noise associated with traditional hydraulic systems. Noise reduction of up to ~15 dB can be targeted under comparative conditions

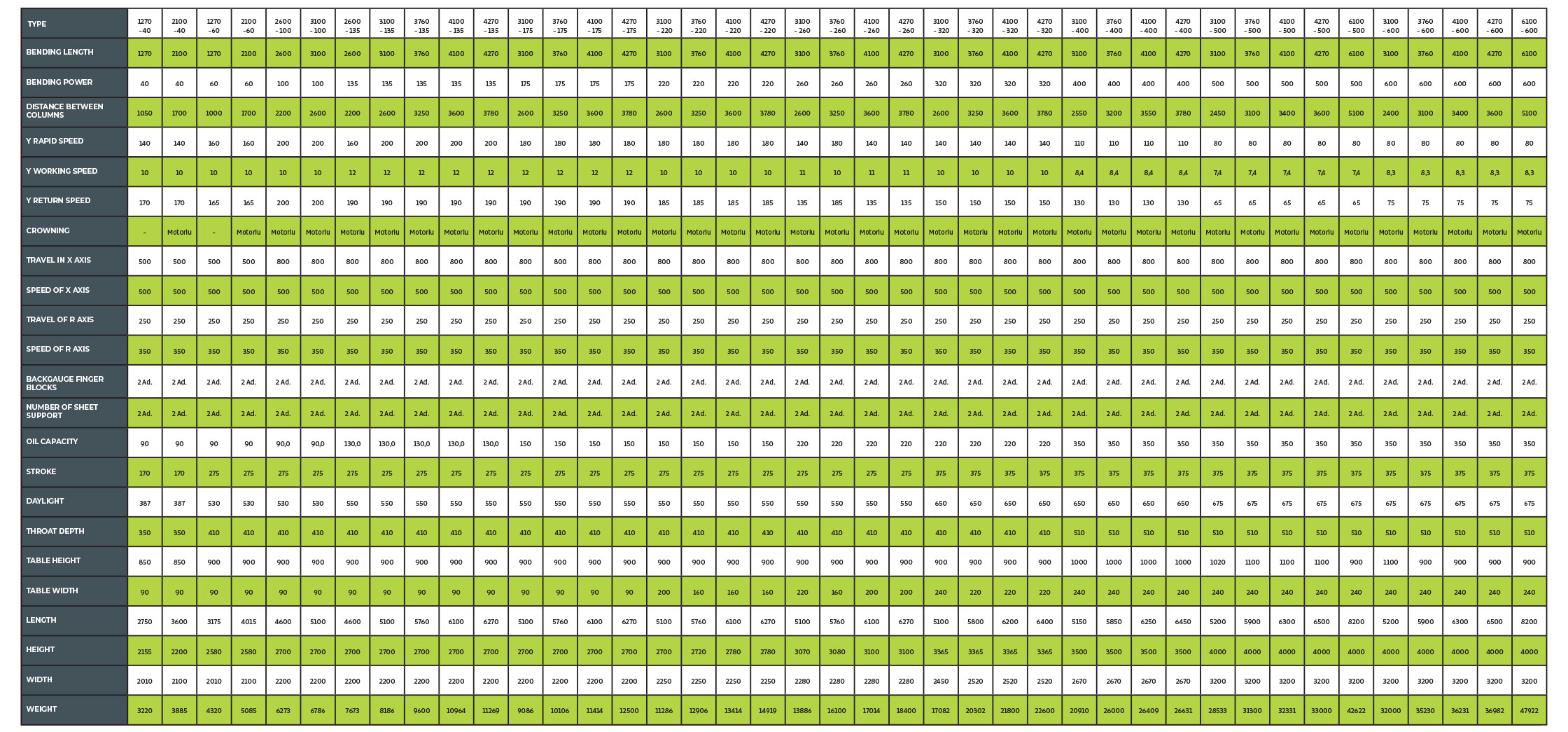

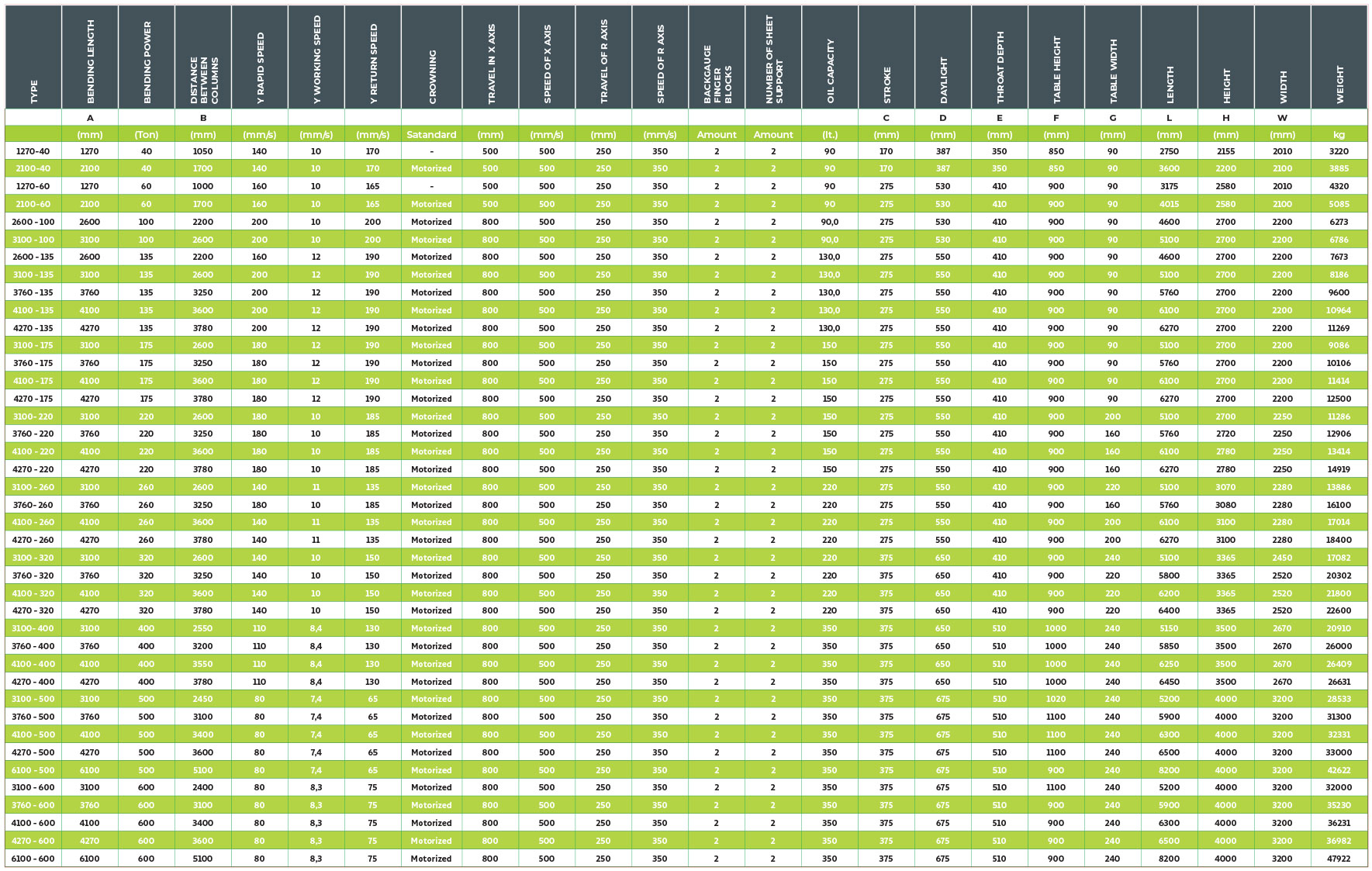

Wide configuration range In addition to the standard working length and capacity range of 1.27–6.1 m and 40–600 tons, the EVO-IV Servo Hybrid is also available in larger lengths and capacities on request, offering a broad configuration spectrum for sheet metal processing, general fabrication, and high-volume production.
