SMART PLASMA
LOW COSTS
Achieve exceptional precision while minimizing costs by utilizing only oxygen gas for cutting. The EPL Smart Plasma Series is designed to lower your cutting expenses, making it a cost-effective choice for high-quality results.
HIGH PRODUCTIVITY
Maximize your production efficiency with unmatched cutting speeds and rapid transitions. The EPL Smart Plasma Series delivers superior cutting quality, even in the most demanding applications, ensuring peak productivity.
EASY OPERATION
Simplify your workflow with automatic, optimized cutting parameters. The EPL Smart Plasma Series adjusts settings in a single step without requiring operator intervention, guaranteeing consistent and reliable results.
ENHANCED DURABILITY
Constructed with robust components and advanced materials, the EPL Smart Plasma Series is built to withstand rigorous use. This durability ensures long-lasting performance and reduces maintenance needs, providing dependable operation over time.
ADVANCED TECHNOLOGY
Incorporates state-of-the-art plasma technology for superior cutting precision and efficiency. The EPL Smart Plasma Series integrates the latest advancements, offering cutting-edge performance and innovation.
VERSATILE APPLICATIONS
Adaptable to a wide range of materials and thicknesses, the EPL Smart Plasma Series excels in various cutting tasks. Its versatility makes it suitable for diverse industrial applications, from intricate designs to heavy-duty projects.
SUBSCRIBE E-NEWSLETTER
You can subscribe to the e-bulletin to receive information regarding the developments about Ermaksan
Cutting Station
Kesim İstasyonu

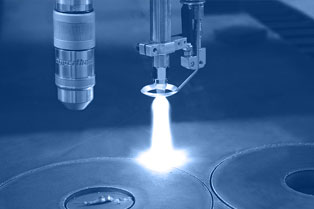

OXYCUT - OXY-FUEL CUTTING SYSTEM
OXY-FUEL KESİM SİSTEMİ
Using a single software solution to program for plasma, laser, waterjet, and oxyfuel machines can result in:
- Reduced cost of software ownership (upgrade charges, maintenance fees, etc)
- Reduced employee (programmer) training requirements
- Reduced business risk by making it easy for any employee to program any cutting machine using a single software product
- Increased flexibility allowing NC output for alternate cutting processes during a machine failure
ProNest assists companies that cut parts by providing the above benefits and delivering programming capability for virtually all plasma,
laser, waterjet, oxyfuel and punch combination machines, regardless of machine brand or model. ProNest, ProNest LT & ProNest LTS oxy-fuel process support overview ProNest offers complete support for the oxyfuel cutting process. Pro-Nest also supports virtually all brands of these machines, regardless of manufacturer.
The following is an overview of the oxyfuel-specific capabilities you’ll find in ProNest. Note that some machine manufacturers have their
own naming convention for a number of the capabilities listed below. Please contact us with any questions you have concerning machine
support not listed.
- Bridge cutting
- Bevel support
- Multi-head support with fixed and variable spacing
- Plate cropping
- Plate machine support for plate processing machines, including spindle processes
- Process parameters
- Material type, thickness, grade and class-based process parameters including advanced kerf and feedrate commands, piercing, etc
- Material type and thickness-based lead parameters including various lead styles (lock, edge start, etc.), angles, extensions and over-travels
- Automatic and interactive separations for part, plate, and pierce spacing
- User defined variables–numerous parameter configurations
- Skeleton cut-up

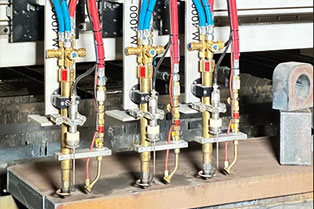

IHT M4000 CAP
IHT M4000 CAP
The robust M 4000 CAP system offers non-contact, accurate and fast clearance checking for oxy-fuel cutting machines, which can achieve high-quality dry cuts thanks to the built-in IHT quality.
It consists of a Linear Drive Body Cover, a Guide Rail (available in three different lengths) and a Control unit Cover with a built-in capacitive sensor system and motor controller . A ring electrode measures the opening to a metallic workpiece.
The Linear Drive Cable carries the power, CNC data signals and settings from the remote control potentiometer.

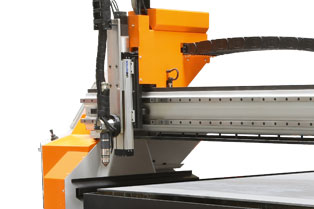

ERMAK THC
ERMAK THC
- Superior cutting quality and ideal consumables life with arc voltage sampling and control.
- Up to 80 % increases in parts per hour production by minimizing cut to cut cycle time.
- Ultimately strong mechanics under 2 years warranty.
- Easy to use human machine interface for under one minute fast job adjustment.
- Performance advantages are achievable with minimal operator input, eliminating the need for extensive training and allowing you to get the best performance across any shift with any operator at any plant.
Electric Panel
Elektrik Panosu

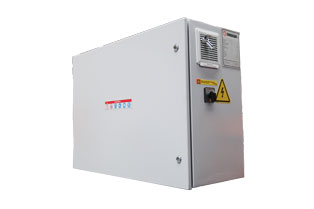

ELECTRIC PANEL
ELEKTRİK PANOSU
Power Supply Unit
Güç Kaynağı
Safety
Güvenlik

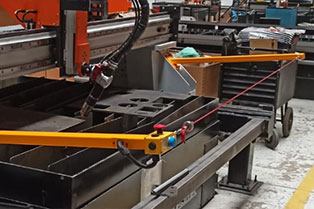

EMERGANCY STOP CABLE AROUND THE GANTRY
KÖPRÜ ETRAFINDA GÜVENLİK KABLOSU

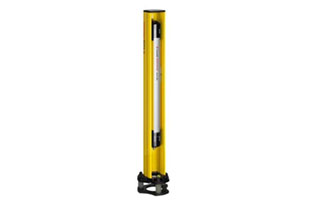

LIGHT BODYGUARD
IŞIKLI KORUMA PANELİ
BODYGUARD CAAF
KAFESLİ KORUMA

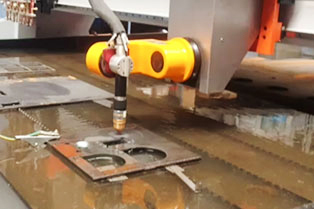

WATER TABLE
SULU TABLA

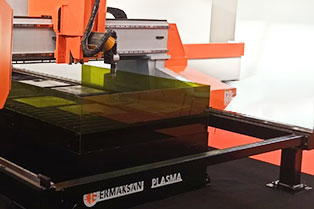

PORTAL TABLE
PORTAL TABLA
It is suitable for use in heavier jobs by fixing the machine rails and body to the ground.

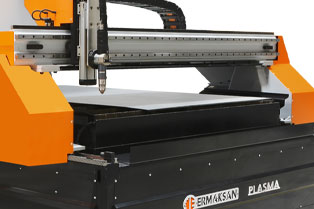

COMPACT TABLE
KOMPAKT TABLA
Thus, the appearance becomes more compact and the machine is easier to transport.
Air conditioning
Klima

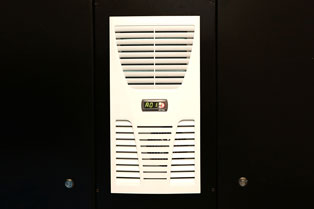

ELECTRIC PANEL COOLER
ELEKTRİK PANEL SOĞUTUCUSU
Controller
Kontrolör

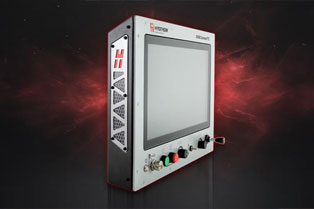

HYPERTHERM EDGECONNECT TC CONTROLLER
HYPERTHERM EDGECONNECT TC KONTROLÖR
New with EDGE® Connect CNC
- Hypertherm’sPhoenix® version10CNCsoftware
- Microsoft Windows10 embedded operating system
- ProNest® CNC automatic nesting with process optimization
- Internal Program mable Logic Controller (PLC) and software based operator’s console that enable unique cutting machine features
- EtherCAT machine interface for easy connectivity and superior motion
- Integrated 495 mm projected capacitive touch screen available on some models
Easy to Use
Hypertherm’s proprietary Phoenix software is common across the entire family of CNCs. This software is designed specifically for the X-Y and bevel cutting market. Through years of cutting experience, Hypertherm® engineers have learned the critical parameters to achieve superior cut quality on every part.
Phoenix CNC software improves cut quality and productivity by delivering our expertise directly to your factory, making it as if you have your best operator on every shift.
- Using the patented CutPro® Wizard, even new operators can be ready to cut production parts in less than five minutes
- On-screen Software Operator’s Console (SoftOpCon) for easy setup and operation of cutting station and manual motion
- One touch access to supporting documentation including cutting optimization tips, consumable change instructions and diagnostic tools in multiple languages
- Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
- Custom cut chart scan be created and controlled in the part program or made available to the CutPro Wizard
- Configurable Watch WindowsTM enable on-screen real-time monitoring of key process performance parameters while cutting
Marking Pen
Markalama Kalemi

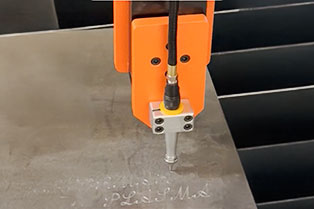

MARKING PEN
MARKALAMA KALEMİ
Motor
Motor

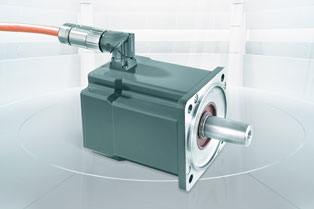

MITSUBISHI DIGITAL AC SERVO MOTOR
MITSUBISHI DIGITAL AC SERVO MOTOR
Oxygen Cutting
Oksijen Kesim
OXY CUT ±45° MANUAL ANGLE CUTTING APPARATUS
OXY CUT ±45° MANUEL AÇI APARATI
Plasma Gas Console
Plazma Gaz Konsolu
AUTOMATIC GAS CONSOLE
OTOMATİK GAZ KONSOLU
Automatically changes processes on the fly to enable rapid switching between cutting and marking.
Automatically adjusts for variations in incoming gas pressure to produce the most consistent cutting
performance.
Plasma Manual Angle Apparatus
Plazma Manuel Açı Aparatı

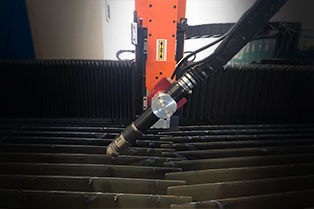

STANDARD BRIDGE MANUAL ± 45° ANGLE CUTTING APPARATUS
STANDART KÖPRÜLÜ MANUAL ±45° AÇILI KESİM APARATI
Users cannot cut full width with angle cutting.
EXPANDED BRIDGE MANUAL ± 45° ANGLE CUTTING APPARATUS
GENİŞLETİLMİŞ KÖPRÜLÜ MANUAL ±45° AÇILI KESİM APARATI
In this case, the machine can cut the sheet that can be cut to the maximum dimensions of full width and length.
Plasma Feature
Plazma Özelliği

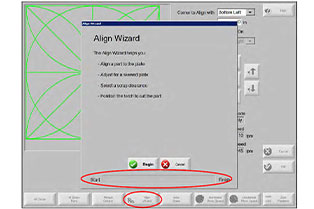

PLATE ALIGNMENT FEATURE
PLAKA HİZALAMA ÖZELLİĞİ

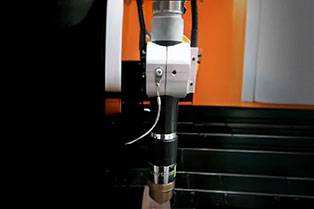

POINT LASER LIGHT FEATURE
NOKTA LAZER IŞIĞI ÖZELLİĞİ
At the same time, this plate gives us a huge advantage in alignment.

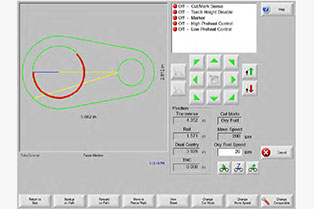

RETURN FEATURE
GERİ DÖNÜŞ ÖZELLİĞİ

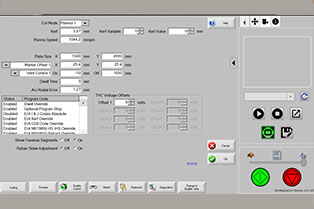

METRIC AND INCH FEATURE
METRİK VE İNÇ ÖZELLİĞİ

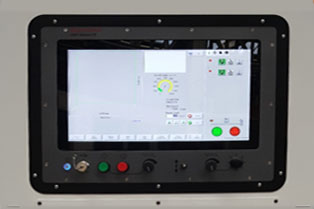

NETWORK INTERFACES AND USB PORT FEATURE
AĞ ARA YÜZLERİ VE USB PORTU ÖZELLİĞİ
Thanks to the USB ports, program installation can be made to the machine.

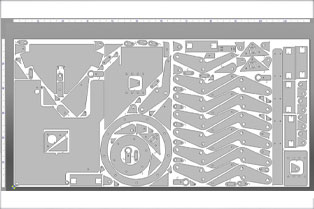

AUTOMATIC CUTTING HEIGHT CORRECTION SOFTWARE
OTOMATİK KESİM YÜKSEKLİK DÜZELTME YAZILIMI
It is combined with the use of software and electronic parts.
Reducer
Redüktör

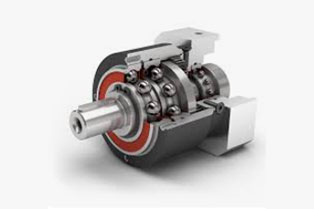

NEUGART PLANET TYPE REDUCER
NEUGART PLANET TİP REDÜKTÖR
3 AC Brushless Servo motors of American/German/Japanese origin in accordance with CE and CSA standards, and high performance gapless planetary type gearbox are used, including double drive synchronous in Y Axis and single in X axis.
Sheet Cutting Software
Sac Kesme Yazılımı

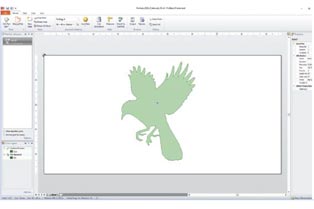

PRONEST®LT
PRONEST®LT YAZILIMI
Jumpstart your business and your profitability today!
ProNest LT is a powerful CAD/CAM software that allows you to design, nest, and cut with ease. It’s designed for light industrial, mechanized cutting and provides professional grad cut quality at an affordable price, allowing doers, makers, and fabricators of all sizes to get the most out of their conventional plasma and oxyfuel cutting machines.
Powermax and MAXPRO Ready
ProNest LT is designed in close collaboration with Hypertherm’s renowned Powermax® and MAXPRO® plasma systems, as well as HPR with a manual gas console. This ensures you achieve exceptional cut quality, productivity, and efficiency, maximizing your machine's performance.
BENEFITS
- EASE OF USE: Incredibly easy to learn and use, with intuitive screens, and a wide variety of helpful features.
- BUILT-IN DESIGN TOOLS: Import CAD files, artwork, and signs, or create your own designs using powerful built-in tools.
- BETTER PART QUALITY: Hypertherm’s built-in expertise means the best possible cutting parameters are applied for each job’s unique needs, resulting in sharper corners, cleaner edges, and improved hole quality.
- AUTOMATIC NESTING: Nest jobs even more quickly and efficiently using intelligent auto nesting strategies.
- UNLIMITED TECHNICAL SUPPORT: Unlimited access to technical support, training, and software updates is included with your purchase.

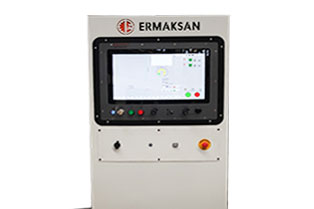

ELECTRIC PANEL / PLATFORM
ELEKTRİK PANOSU / KÜRSÜLÜ

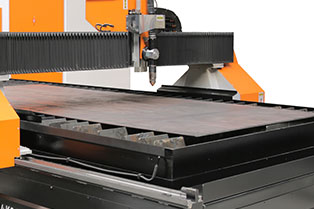

I-CUT PLATE
I-CUT PLATE
The wide-base software for plasma and the user-friendly CNC controller provide great convenience for the operator.
R&D engineering studies have been meticulously applied in the main body and movable bridge of the EPL plasma cutting machine, which ensures high cutting quality.
The EPL Plasma Series is the machine with the most ideal consumable consumption on the market. Ermaksan in consumables and spare parts; Hypertherm offers its customers very special price advantages in materials.

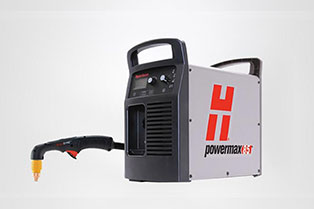

POWERMAX 85 SYNC
POWERMAX 85 SYNC
Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to
automatically adjust the gas pressure.
With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.
Machine Options
Makine Opsiyonları

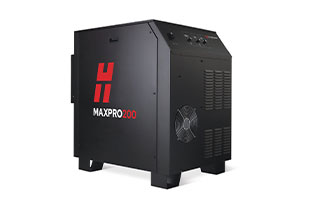

MAXPRO 200 POWER SUPPLY UNIT
MAXPRO 200 GÜÇ KAYNAĞI
The easy-to-use system operates with either air or oxygen plasma gas, and combines fast cutting speeds and quick process changes to
maximize productivity.
Advanced Hypertherm consumable designs including LongLife® technology improve cut consistency and significantly increase consumable life to lower your cost per part.
DESIGN2FAB® SOFTWARE
DESIGN2FAB®

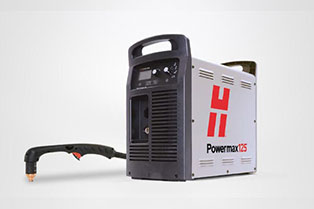

POWERMAX 125
POWERMAX 125
Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1”) mechanized
pierce capability, and fast gouging metal removal.
It also gives you the latest technological innovations, such as Smart Sense™
technology to automatically adjust the gas pressure. Eleven Duramax® Hyamp™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.

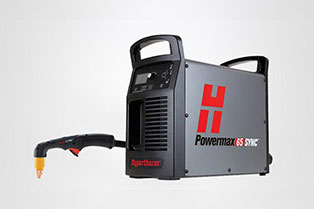

POWERMAX 65 SYNC
POWERMAX 65 SYNC
Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to
automatically adjust the gas pressure.
With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for
the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.

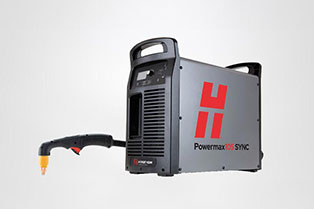

POWERMAX 105 SYNC
POWERMAX 105 SYNC
Delivering superior cut capabilities on 32 mm (1-1/4”) thick metals, it also offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure.
Seven Duramax™ torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, and robotic cutting and gouging.

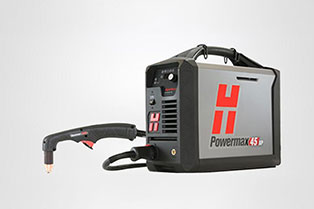

POWERMAX 45 XP
POWERMAX 45 XP
The Powermax45® XP delivers increased cut capacity up to 16 mm (5/8”) metal as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation.
New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.
Filtering System
Emiş Ünitesi

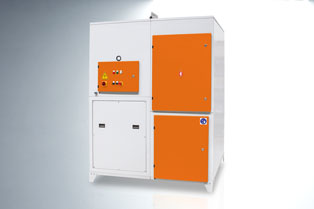

FILTERING UNIT
EMİŞ ÜNİTESİ
Filtering unit is designed specially for filtering the gas and particles. With this unit the dirty dust is removed, leaning a safe & clean working environment.
- Clean working ambiance
- Integrated burr separator inhibiting sparks and heavy particles to Reach into the filtering unit during cutting
- 99.9% filtration efficiency according to EN 60335/2/69
- Synchronized automatic start and stop from CNC cutting frame as command
