EKN F/V

EKN F/V

T grooved upper table
4 hydraulic pressure cylinders
Movable foot pedal
200x250 mm blade length
30 strokes per minute
Auto feeler adjustment
background

EKN - CORNER NOTCHER

Customized Solutions for Various Angles...

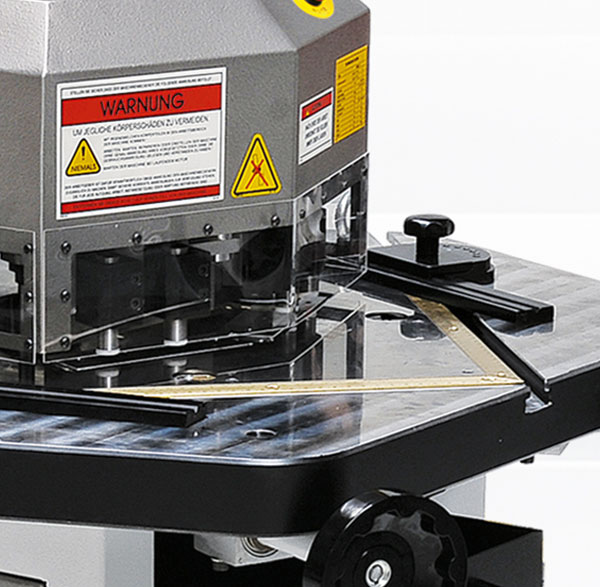

ERMAKSAN EKN angle adjustable hydraulic corner cutting machines have a strong structure with a steel table with static and dynamic rigidity and upper beam material. The upper table of the machine is processed with T-grooves for precise cutting. It is equipped with an automatic feeler setting system that does not require separate adjustment to cut sheet metals with different thickness.

  • Possibility to easily adjust the corner angle up to 30-140 degrees thanks to the handwheel (EKN-V)
  • 90o fixed angle (EKN-F)
  • T-grooved work table with static and dynamic rigidity and top beam material
  • Automatic feeler setting system that does not require separate adjustment to cut sheet metals with different thickness
  • Long service life and simple operation
  • Movable foot pedal
  • Adjustable stroke
  • Plexiglass guards
  • Quick-adjustable front support arms, and ruler and t-square equipment that allow cutting at the desired angle
  • 4 anti-sliding press cylinders
  • Waste collection bin
  • Maintenance-free HOERBIGER hydraulic system
  • Upper cover manufactured according to CEI and EMPI norms, and emergency stop button at front and on pedal arm
  • Precise guide shafts for more smooth cutting

CORNER ANGLE

Designed for cutting 60° to 140° degrees with ST-44 quality 200 mm long and 6 mm thick sheet metals; and 30° to 59° degrees with 4 mm thick sheet metals.

T-GROOVED WORKTABLE

The functionality of the machine increases thanks to the T-grooved work table, while providing a significant ease of use to the operator.

PRECISE GUIDE SHAFTS

Enables flexible and comfortable cutting of various materials of various shape and dimension.
