FIBERMAK RAPTOR

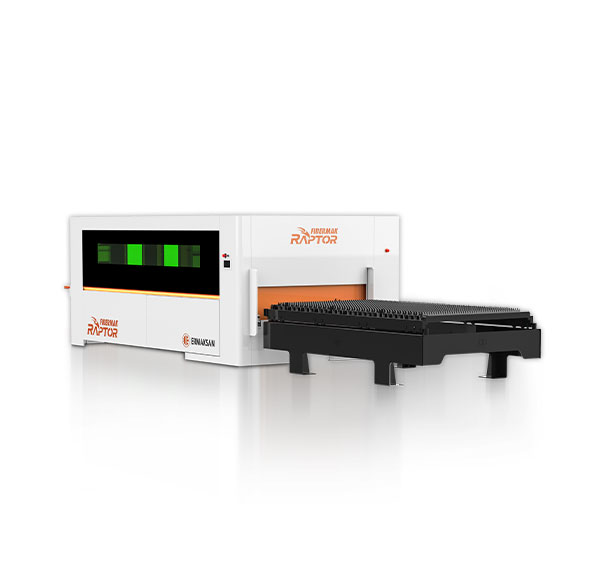

FIBERMAK RAPTOR – LASER CUTTING MACHINE
Ergonomic and Affordable
The FIBERMAK RAPTOR Fiber Laser Cutting Machine stands out with its compact exterior and ergonomic design, offering an efficient and economical solution for limited production spaces.
With 1.5G acceleration, 80 m/min cutting speed, auto-focus cutting head, and a lightweight profile body, it delivers both performance and ease of use. The integrated LED light bar enhances its appearance with a touch of elegance and modernity. Engineered to meet high-quality standards, RAPTOR is the ideal choice for businesses seeking affordable production without compromising cutting precision. It combines speed, efficiency, and contemporary aesthetics in a single machine platform.
FLY-CUT FEATURE
With the Fly-Cut feature, you can cut both circular and equilateral pieces at great speeds with great quality.
PlayFREQUENCY CUTTING MODE
Thick material piercings are performed more quickly and heating of the material cut is prevented.
Read more
NC GRAPHICS AND REALTIME STREAMING
While the machine is cutting, it displays the 2D graphic of the NC code in color and allows you to follow which line of code it is on, all within a simple and user-friendly interface.
NOZZLE CLEANING / CALIBRATION
It is the process of autımatically cleaning the slag and dirt accumulated in the nozzle used with the nozzle cleaning system, offered in standard with Fibermak series lasers, by means of a cleaning brush.
Play
BEAM CENTERING CAMERA
The camera-aided laser beam centering adjustment system enables the operators to adjust the laser center effortlessly when needed.
Read more Play
ANTI CRASH SYSTEM
During cutting, possible collision between the laser cutting head and the displaced pieces is prevented, protecting the cutting head against damages.
Read more Play
ERAI - AI ASSISTANT
With ERAI - AI Assistant, discover features you didn't know about your machine, access solutions to errors, aand have a guide to show you the way.
Read more
COUNTERSINK BY LASER
Thanks to Ermaksan’s advanced laser technology, countersunk holes can now be created directly during the cutting process, without the need for additional drilling or milling steps.
Read more Play
INTERNET OF THINGS - SENDING E-MAIL
Machine status and information can be sent to the provided e-mail addresses by connecting the system to the internet. When the machine gives an error, the error code is sent via e-mail.
AUTO SHEET / AUTO MULTISHEET
It allows the part to be cut to be sent to the cutting by selecting the sheet detected by the camera. (Auto Sheet)
Read more Play
AUTOMATIC BEAM CENTERING AND NOZZLE QUALITY DETERMINATION
The camera-aided laser beam centering adjustment system enables the operators to adjust the laser center effortlessly when needed.
Read more
AUTOMATIC NOZZLE CHANGER
Different types of nozzles with different diameters must be used before cutting materials of different types and thickness.
Read more Play
AUTOMATIC PROFILE ALIGNMENT
An automatic profile alignment system has been developed for precise profile cutting with a profile cutting table in machines with Fibermak pipe and profile cutting options.
Read more Play
AUTOMATIC NESTING
It is the process of relocating the part with data on the image taken from the camera and decoding it.
PIERCETEC CUT CONDITION
With its integrated sensor, PierceTec controls laser power and drilling duration in real time. s.
Read more Play
BECKHOFF CONTROLLER
With its proven industrial PC-based control technology, Beckhoff offers a wide range of products for different applications.
Read more
METALIX CAD/CAM SOFTWARE
Offering a complete and comprehensive CAD/CAM solution, Metalix updates its software based on the latest developments in sheet metal processing technologies.
Read more
LANTEK EXPERT CUT CAD/CAM SOFTWARE
Lantek Expert Cut is a nesting software designed for users to simply follow the steps specified by the system.
Read more
LANTEK FLEX3D TUBE CUTTING SOFTWARE
Lantek Flex3d Tubes is a CAD/CAM software system for designing, nesting and cutting pipes and pipe pieces.
Read more
LANTEK INSIDE CAD/CAM SOFTWARE
Programming with Lantek Inside is as easy as using your smartphone. The operator can easily design the program and initiate the cutting process.
Play
ERMAKSAN RESONATOR
State-of-the-art fibre laser resonators produced in Ermaksan Optoelectronics centre stand out with their power classes ranging from 1 to 15 kW, high beam quality, and advanced control features.
Read more
IPG-YLR SERIES RESONATOR
Being customized according to customer needs and requests, IPG-YLR Series (Cassette type) resonators offer affordable solutions to their users. Power alternatives between 1 to 4 kW are available.
IPG-YLS SERIES RESONATOR
IPG-YLS Series (Cabin type) resonators, which are provided according to customer needs and requests, have significant advantages thanks to the quality of easy and on-site maintenance. Power options from 1 to 20 kW are available.
MAXPHOTONICS ELITE SERIES
Maxphotonics ELITE-Series is a laser source that balances cost and performance effectively.
Read more
MAXPHOTONICS PRO SERIES
Maxphotonics PRO-Series stands as the flagship of the Max family's CW lasers, integrating the most advanced technology and laser cutting expertise.
Read more
IPG COOLING UNIT
In high-performance industrial laser cutting systems, maintaining optimal thermal balance is essential for operational continuity and cutting accuracy.
Read more
PRECITEC LIGHTCUTTER AUTO FOCUS CUTTING HEAD
LightCutter is an ideal and economical solution for all laser cutting applications in the low to medium power range up to 4 kW.
PRECITEC PROCUTTER 2.0 CUTTING HEAD
With the ProCutter 2.0 cutting head, you will no longer need to choose between high quality and high speed, because you can obtain both.
Read more
HANDWHEEL
It is an equipment that facilitates the positioning of the head even without staying by the control panel.
WIRELESS HANDWHEEL
Provides wireless and manual axis movements for quick positioning of the cutting head.
T Ø200 PIPE/PROFILE CUTTING
In addition to flat sheet metal cutting, we also allow our users to benefit from optional pipe and profile cutting features in our Fibermak Momentum series machines.
Read moreSINGLE SHUTTLE TABLE
A single cutting table is offered as standard in order to maintain the compact structure in Fibermak RAPTOR series laser cutting machines.
Read more
PNEUMATIC SHUTTLE TABLE WITH TRANSFER BALLS
Thanks to this system, the sheet metals placed on the table can be easily moved by the operator. It especially prevents the stainless steel sheets from scratches while being placed on the grill.
PROFILE HOLDING TABLE
It is an automatic profile alignment system for precise profile cutting with profile cutting table.
Read more Play
PALLET CONVEYOR
It is a system that enables the pieces falling into the machine during cutting to be brought to the operator by an automatic transport vehicle.
Read more
CLEAN - DRY AIR SYSTEM
This system ensures that the oil and moisture levels are reduced to certain figures in order for the values of air coming out of the compressor are at desired levels before the air is transferred to the machine.
Read more
PROPORTIONAL VALVE SYSTEM
This is the system that automatically adjusts the O2 or N2 auxiliary gas according to the material type, and the auxiliary gas pressure according to the material thickness, and transfers the gas to the cutting head.
FILTERING UNIT
Ensures cleaning of smoke and small particles formed during cutting via suction.
Read moreEXHAUST FAN
The suction fan sucks the smoke and particles inside and discharges them to another area. Thus, the harmful particles in the air within the working environment are removed.
FIBER PROTECTION GOGGLES
This is a safety equipment used to prevent harmful beams that occur during cutting.
CENTRAL LUBRICATING SYSTEM
Automatic central lubrication for extended machine life and minimal maintenance.
Read more
PIPE PROFILE CUTTING
With the Combi Raptor, the ability to perform both pipe profile cutting and sheet metal cutting on the same machine offers flexibility and functionality to its users.
FLEXIBILITY
It is designed with a focus on flexible production for users who want to process different types of materials easily and without burrs.
BUILDING A JOB LIST
Dozens of programs can be queued and run automatically at once by creating a job list.
MACHINE UPDATE
With the philosophy of continuous improvement, Ermaksan engineers offer the most up-to-date version allowing you to get the most out of your machine.
HYDRAULIC SHUTTLE TABLE
Nonstop cutting with two cutting tables ensures continuity in production. With the hydraulic table changing system, it provides the opportunity to load sheets even during cutting and collect the cut parts without stopping the machine.
SMART FACTORY SOLUTIONS
With Industry 4.0 solutions, it provides the opportunity to create a Smart Factory with a fast and flexible structure, which enables innovation by increasing productivity in businesses, improves processes, and minimizes errors.
PRODUCT VIDEOS
Product Catalogue
Please click the link below to get detailed information about our products and to view our product catalogue digitally.
CataloguesOnline Catalog
Similar Products
Check out the other products in the category!

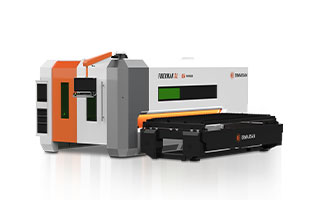

FIBERMAK MOMENTUM GEN-5
A next generation Fibermak that provides its users with superior performance at high cutting speeds.
View product
FIBERMAK MOMENTUM GEN-3
Superior Ermaksan technology, which has won many international awards with its strong and dynamic design; for those who know what they want.
View product

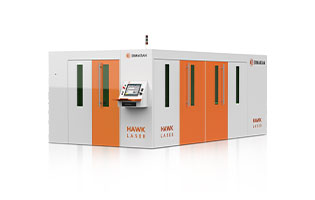

HAWK LASER
Thanks to its easy-to-install and compact structure, it provides a fast and efficient production laser process by reducing the installation, assembly, commissioning, and transportation times.
View product

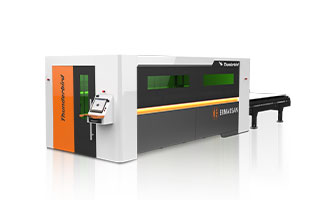

THUNDERBIRD
The new THUNDERBIRD fiber laser machine offers an easy entry to the world of fiber laser cutting with its compact structure that does not require costly equipment.
View product
THUNDERBIRD COMPETITION
The THUNDERBIRD COMPETITION is the newest member of our laser cutting machine family, developed to meet the needs of today’s highly competitive market.
View product
ROBIN
The ROBIN Laser Cutting Machine is engineered as an accessible yet highly reliable solution for businesses seeking efficient laser cutting with minimal investment.
View product

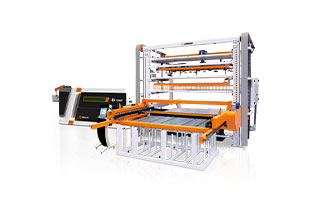

LASER AUTOMATION SOLUTIONS
