ETP
HARDENED TOOL HOLDER
The hardened jacketed structure in the stations allows easy maintenance, replacement and retrofit of the stations at low cost.
RE-POSITION FUNCTION
With the RE-POSITION function, the machine can process sheet metal longer than the X axis without interruption.
NEXT GENERATION CONTROLLER
With Fanuc Oi-PF control unit, the system becomes user friendly, with more precise and faster positioning.
TOOL LUBRICATION
It offers the ability to lubricate automatically at every stroke with the lubrication system in the tools.
DISTORTION PREVENTION SYSTEM
The distortion prevention system used in machines with an axis length of 2500 mm provides more precise and long-lasting operation by preventing distortion and vibration on the ball screw.
RIGID CONSTRUCTION
With its hardened and stress relieved O-type body structure, it allows to operate with high performance for many years.
SUBSCRIBE E-NEWSLETTER
You can subscribe to the e-bulletin to receive information regarding the developments about Ermaksan
Nesting
Nesting
Table
Tabla
Machine Axis
Makine Eksenleri
Station
İstasyon
Clamp
Klemp
Controller
Kontrolör
Pneumatic System
Pnömatik Sistem
Software
Yazılım
Safety System
Güvenlik Sistemi

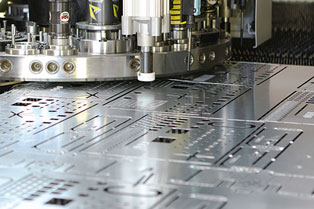

AUTO NESTING
AUTO NESTING
It performs part design, lay-up and production technology in just one programme.
This reduces the time and effort required to create the numerical control programme. The seamless combination of powerful manual nesting functions such as manual and automatic nesting, grid copying, transport, rotation with excellent flexibility and maximum performance helps to save time.
In addition, the selection made by the system can be easily changed for the macro commands to be used.
PARÇA DÜŞÜRME TABLASI
PARÇA DÜŞÜRME TABLASI
EK SEHPA (500MM + 500MM)
EK SEHPA (500MM + 500MM)

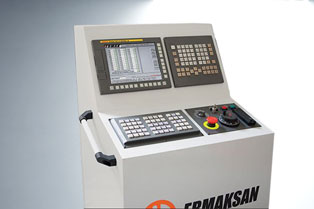

FANUC SERVO SYSTEM
FANUC SERVO SİSTEM
- Indexes Fanuc servo motor and Harmonic drive gearbox
- All axes Fanuc servo motor and ball screw
- 3 meter machines with Fanuc servo motor and ball screw for Y1+Y2 axes
- Direct connection Fanuc servo motor, X axis krameyer + reducer Fanuc servo motor
VOITH TURBO H+L HYDRAULIC SYSTEM
VOITH TURBO H+L HİDROLİK SİSTEM
- Highly dynamic punch drive with hydromechanical closed-loop control
- Predefined machine cycles with programmable stroke parameters
- High precision and robust valve technology
- Process safety with feedback monitoring
- Optimised power consumption with load-controlled active "two-pressure system"
WHEELED SCRAP BOX
TEKERLEKLİ HURDA KUTUSU
It is a system that enables the scrap pieces that emerge after cutting to be collected at a single point after being separated from the pieces cut to the desired length.
33 Stations
33 İstasyon
Turret 33 Station Tool Layout
- 15xA stations 1/2” fixed 1.6-12.7 mm round,
- 12xB stations 1-1/4” fixed 12.8-31.7 mm round,
- 2xC stations 2” fixed 31.8-50.8 mm round,
- 1xD station 3-1/2” fixed 50.9-88.9 mm round,
- 3xD stations 3-1/2” index 50.9-88.9 mm round,
27 Stations
27 İstasyon
Turret 27 Station Tool Layout
- 11xA stations 1/2” fixed 1.6-12.7 mm round,
- 10xB stations 1-1/4” fixed 12.8-31.7 mm round,
- 1xC station 2” fixed 31.8-50.8 mm round,
- 2xD stations 3-1/2” fixed 50.9-88.9 mm round,
- 2xB stations 1-1/4” index 12.8-31.7 mm round,
- 1xC station 2” index 31.8-50.8 mm round,

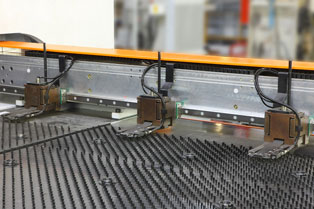

AUTOMATIC HOLDER POSITIONING SYSTEM
OTOMATİK TUTUCU POZİSYONLAMA SİSTEMİ
3 automatic re-positioning clamp system and sheet metal controlling switches (4 at machines with 3000 mm axis). Sheet metal controlling switches on clamps

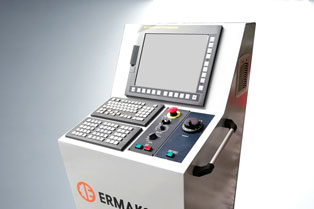

GE FANUC Oi-PF
GE FANUC Oi-PF
GE Fanuc Oi-PF
- Track Programme memory, 256 KB
- Memory C, FROM / SRAM, 16 MB / 2 MB - CPU CARD, PENTIUM, DRAM 16 MB
- Inch to Metric Conversion
- Workpiece Coordinate System
- Reader / Punch Interface
- External Message
- Cutter Arrangement C
- Track Programme memory, 256 KB
- Registered Programmes, 125
- Extended Section Programme Editing
- Number of Working Hours and Parts Display
- Graphic Display
- Multi Part Machining
- Multi-agent Control
- Safe Zone Control
- Sheet holder area Avoidance Function
- Safety Zone Area Expansion
MULTITOOL WITH 3 AND 8 STATIONS
3 VE 8 İSTASYONLU MULTITOOL
With 3 automatic index stations on the turret, different contours can be cut at desired angles and at the same time, 8A, 3B and 1C tools can be mounted on these index stations to obtain very different tool combinations.
Index positioning accuracy is 0.01 degree.

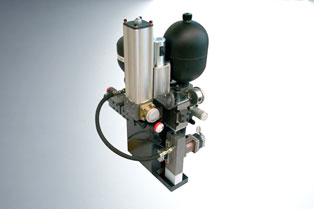

AIR BLOWING AND LUBRICATION SYSTEM
HAVA ÜFLEME VE YAĞLAMA SİSTEMİ (AIRBLOW)
It prevents the parts (scraps) cut by the punch from rising up and the tool from heating up during operation.

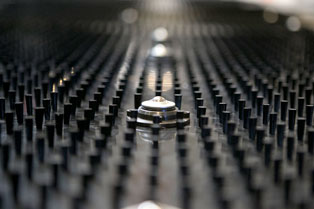

WITH BRUSH AND BALL
FIRÇALI VE BİLYALI
In addition to the brush and ball options that allow easy sheet loading on the table, which is large enough to process sheet metal of different sizes in one go, there are both brush and ball type tables that can be used both together.
Axis acceleration control is performed automatically by the programme based on the material weight.

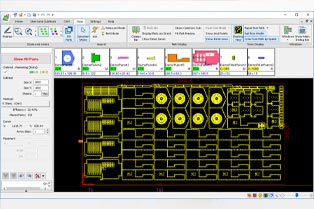

METALIX
METALIX
Punch, softpunch, forming, marking, wheel moulds, knockout tools, threading tools, such as user-friendly software with illustrated explanations to operate all featured moulds, lower, middle and upper positions of the stroker for each tool, speeds, parameters and software to set the waiting times below, thanks to these software provides the advantage of high quality forming.
- Programme restart; automatically start the programme from where it left off
- Functions and options to operate patented special wheeled moulds such as the wheeled Wilson Erya Mate
- Functions that can automatically adjust acceleration and speed according to sheet weight
- Safety zone check around the clamps
- Offset to X and Y axes
- Ability to work with multitool
CHAIN PROTECTION AROUND THE MACHINE
MAKİNA ÇEVRESİNDE ZİNCİR KORUMA
LIGHT BARRIER
IŞIK BARİYERİ
Multi-beam safety devices are installed in such a way that the hazardous area can only be reached by interrupting the light path between transmitter and receiver. It is not possible to start the system as long as personnel are in the danger zone.
The multi-beam safety device secures access to a hazardous area and signals the entry of objects as soon as a light beam is interrupted. The machine or plant controller must recognise this message and stop the dangerous movement.
Scrap Box
Hurda Kutusu
BARCODE READER
BARKOD OKUYUCU
In order to facilitate work processes and prevent errors, the programme is loaded automatically by reading the code from the sheet or anywhere else. Thus, your production times are reduced and your productivity increases.
Hammer System
Çekiç Sistemi
Smart Features
Akıllı Özellikler
